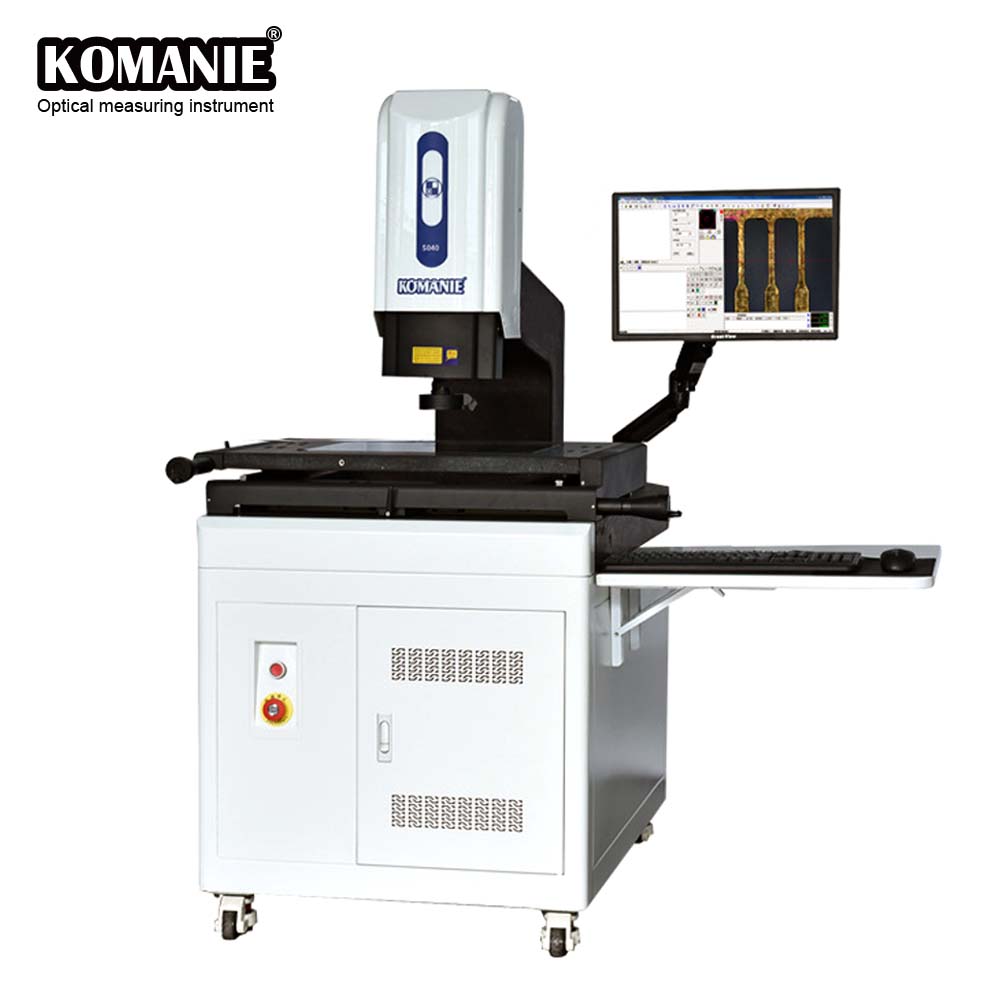

Digital Video Measuring Machine Automatic Optics Instrument for Battery Square Pattern Plastic Electronic
Manual secondary element measuring instrument, widely used in machinery, electronics, mold, injection molding, hardware, rubber, low voltage electrical appliances, Magnetic materials, precision hardware, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, computers (computers), liquid crystal TV (LCD), printed circuit boards (PCB), automobiles, medical devices, watches, instruments, screws, springs, gears, cams, threads, radius template, thread template, wire and cable, tools, bearings, stamping parts Screen, test screen, cement screen, mesh plate (steel mesh, SMT template), etc.
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments

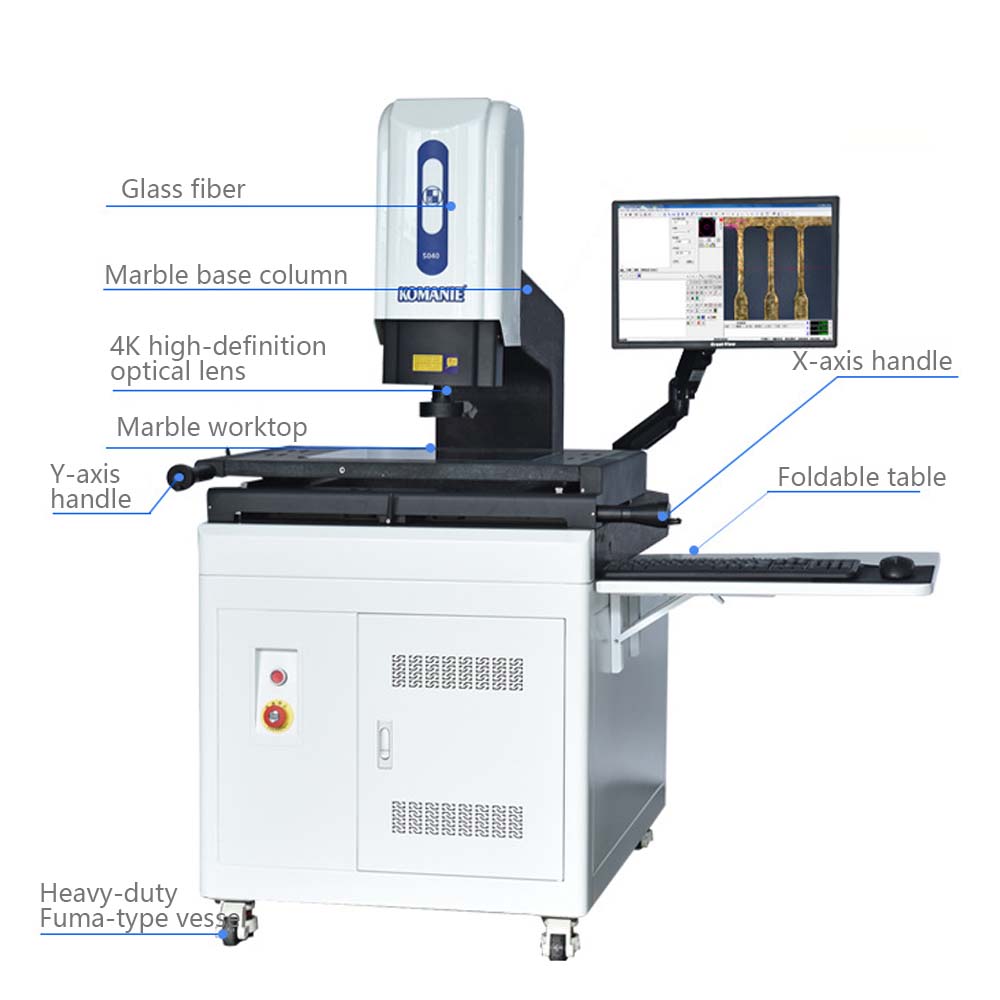

Product features:
1.The base/columns/workbench are made of high-quality 00 grade granite marble, which is of high precision and good stability.;
2. Self-developed semi-automatic dedicated control system.
3. Using imported precision-grade linear guides and X/Y toothless nut transmission. Z-axis servo motor + ball screw transmission.
4. High-definition continuous zoom optical lens, capable of continuously adjusting the zoom ratio without the need for zoom correction..
5. Using a 200W pixel gigabit network color digital CCD camera, high-definition measurement images can be achieved.
6.Z-axis automatic focusing, measuring flatness/segment difference.
- Model：DBC-322D / 432D / 542D / 652D
- XYZ measuring stroke：300*200*200mm /400*300*200mm / 500*400*200mm / 600*500*200mm
- Working distance：90mm
- Workbench size：470*400mm / 660*540mm / 800*700mm / 900*800mm
- Maximum load：30kg
- Transmission method：X/Y-axis lead screw drive without teeth, Z-axis worm gear drive
- Resolution of grating ruler：0.0005mm（0.5μm）
- Measurement accuracy：X/Y≤(2.5+L/200)μm，Z≤(5+L/200)μm，Repeat≤2μm
- Optical lens ：MTG high-definition continuously variable focal length lens / continuous magnification range 0.7 – 4.5x
- Light source system：LED Ring Surface Light source + Contour LED cold light source
- Overall dimensions：1190*815*1550mm / 1350*1080*1550mm / 1500*1215*1560mm / 1600*1315*1560mm
- Instrument weight：240kg / 400kg / 500kg / 600kg
