Features
1. Professional measurement software, with fast auto focus, automatic edge finding, automatic measurement functions, as well as multiple coordinate functions, the workpiece can be placed at will, the software also has 3D height measurement, flatness, warpage and other measurement functions, measurement Data can be imported into Word, Exce/AutoCAD.

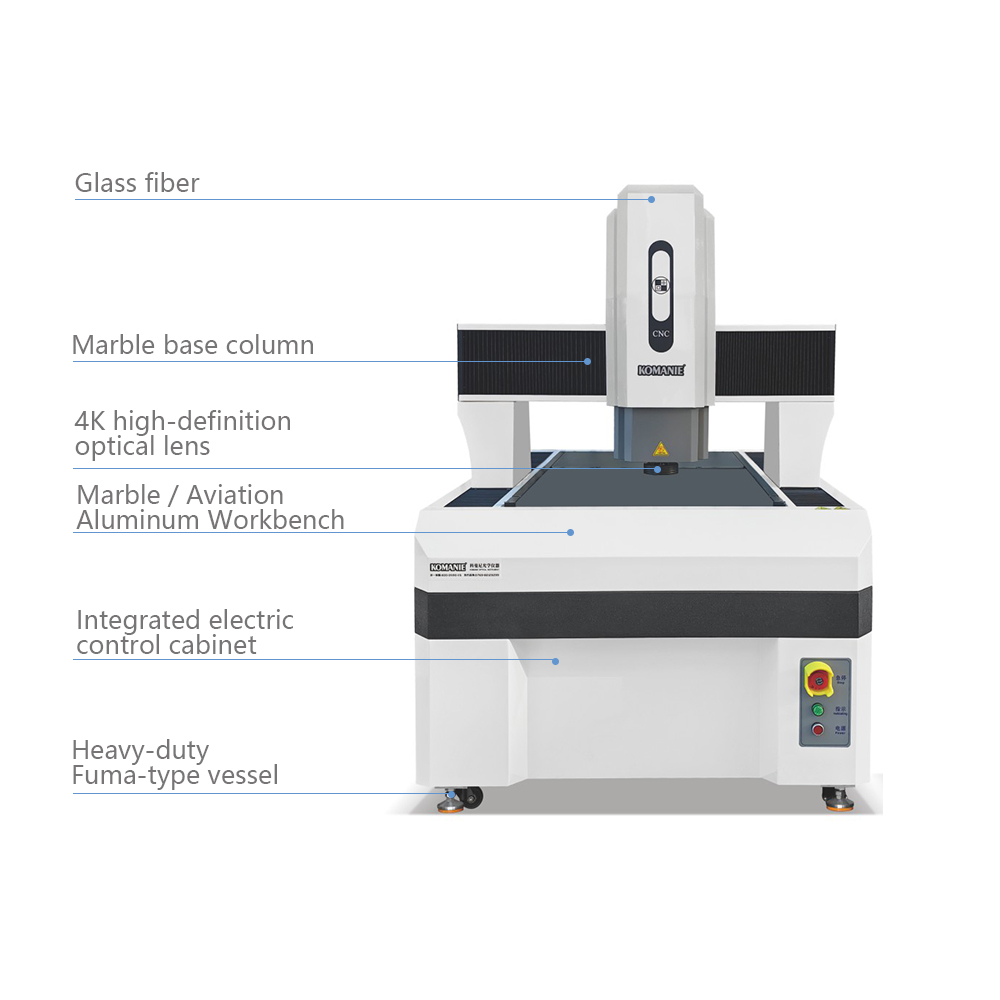

2. Adopt mobile bridge structure design, wide space, suitable for measuring large size products.
3. The machine adopts flower table structure, which has good stability, temperature resistance and corrosion resistance.
4. Adopt German open metal grating ruler, with high precision and good stability.
5. The three axes use Taiwan precision linear guides and screw rods.
6. It can be equipped with automatic zoom optical lens to realize automatic zoom measurement.

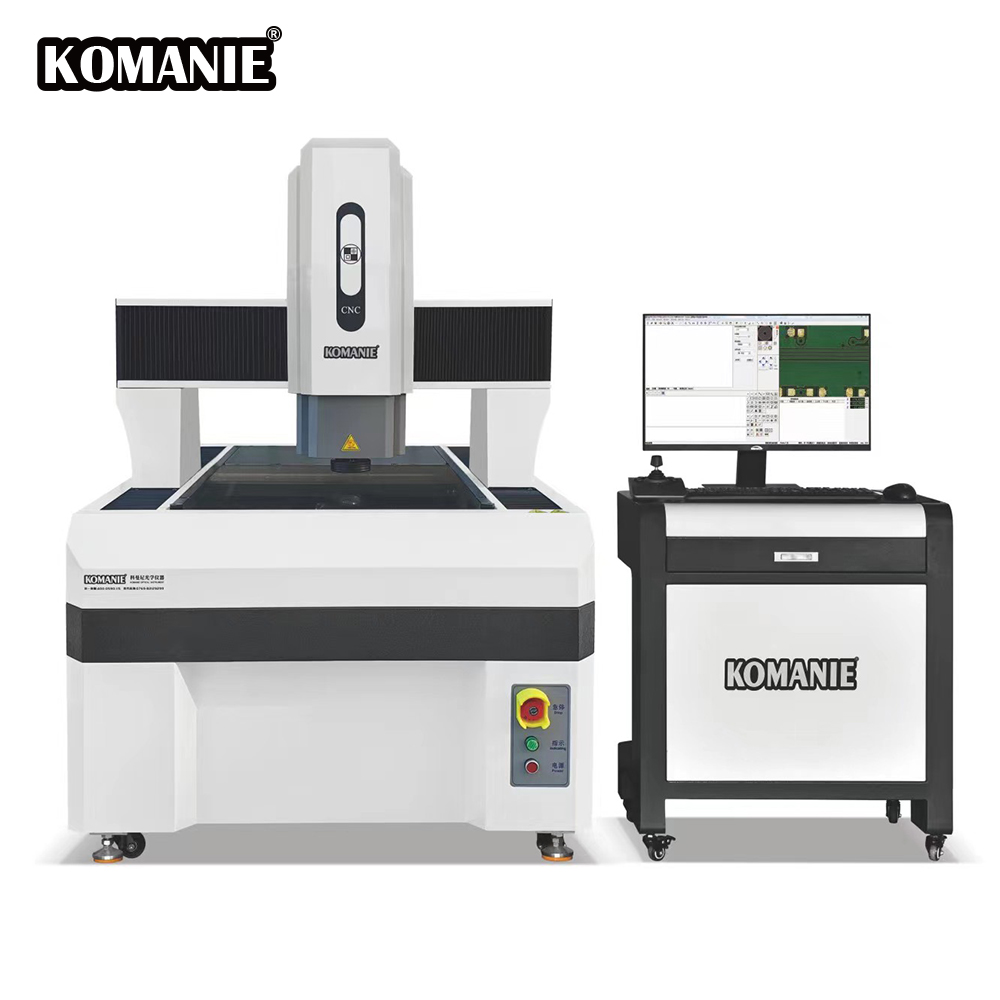

Model：MBM-542C / 652C / 862C
XYZ measuring stroke：500*400*200mm /600*500*200mm / 800*600*200mm
Working distance：90mm
Dimensions of glass：645*615mm / 800*650mm / 1000*750mm
Maximum load：45kg
Transmission method：X/Y/Z axis HIWIN high precision silent linear guide/grinding grade ball screw
Resolution of grating ruler：0.0005mm（Optional 0.0001μm）（Renishaw metal patch optical encoder from the UK）
Measurement accuracy：X/Y≤(3+L/200)μm，Z≤(5+L/200)μm，Repeat≤3μm
CCD camera:200W pixel 1/2 Gigabit HD digital CCD camera, with an image magnification range of 20 – 180x
Optical lens ：MTG high-definition 4K auto-zoom (coaxial light) lens / Continuous magnification range 0.7 – 4.5x
Light source system：Multi-angle programming five ring eight zone LED surface light source + parallel LED tracking bottom light source

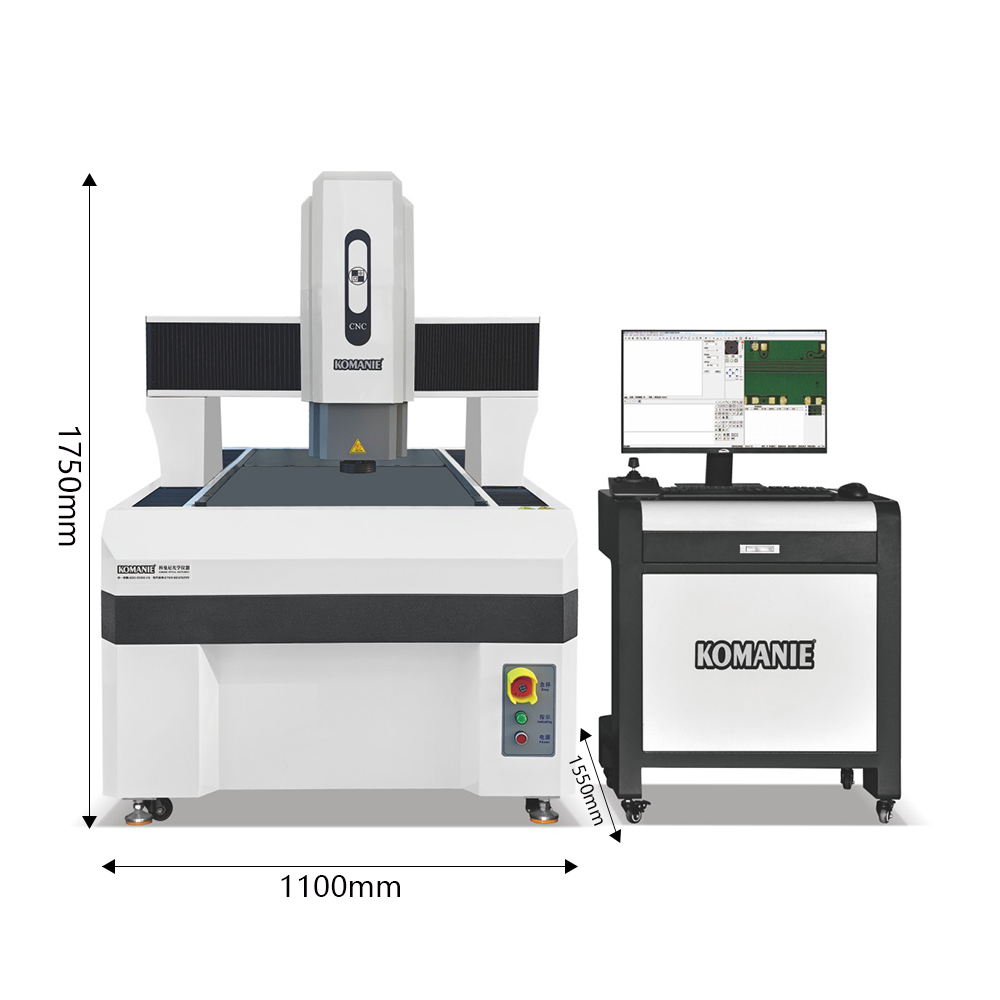

Overall dimensions：1090*1270*1750mm / 1100*1550*1750mm / 1200*1750*1750mm
Instrument weight：800kg / 1000kg / 1200kg
