Manual image size measuring instrument

Manual secondary element measuring instrument, widely used in machinery, electronics, mold, injection molding, hardware, rubber, low voltage electrical appliances, Magnetic materials, precision hardware, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, computers (computers), liquid crystal TV (LCD), printed circuit boards (PCB), automobiles, medical devices, watches, instruments, screws, springs, gears, cams, threads, radius template, thread template, wire and cable, tools, bearings, stamping parts Screen, test screen, cement screen, mesh plate (steel mesh, SMT template), etc.

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

Product features:
1. All three axes are driven by Taiwan high-precision V-shaped guide rail and precision toothless screw, with low noise and low vibration and minimal dynamic geometric error and deformation;
2. Adopt high-quality granite marble base and column, with good temperature stability and effective deformation resistance.
3. Granite marble workbench, small inertia, to ensure high-speed operation of positioning accuracy and steady-state performance.
4. Finite element structural analysis and optimal structural design ensure the high precision and high stability of the whole system for this series.
5. The use of British technology KMN integrated control box to achieve lighting computer synchronous control adjustment.

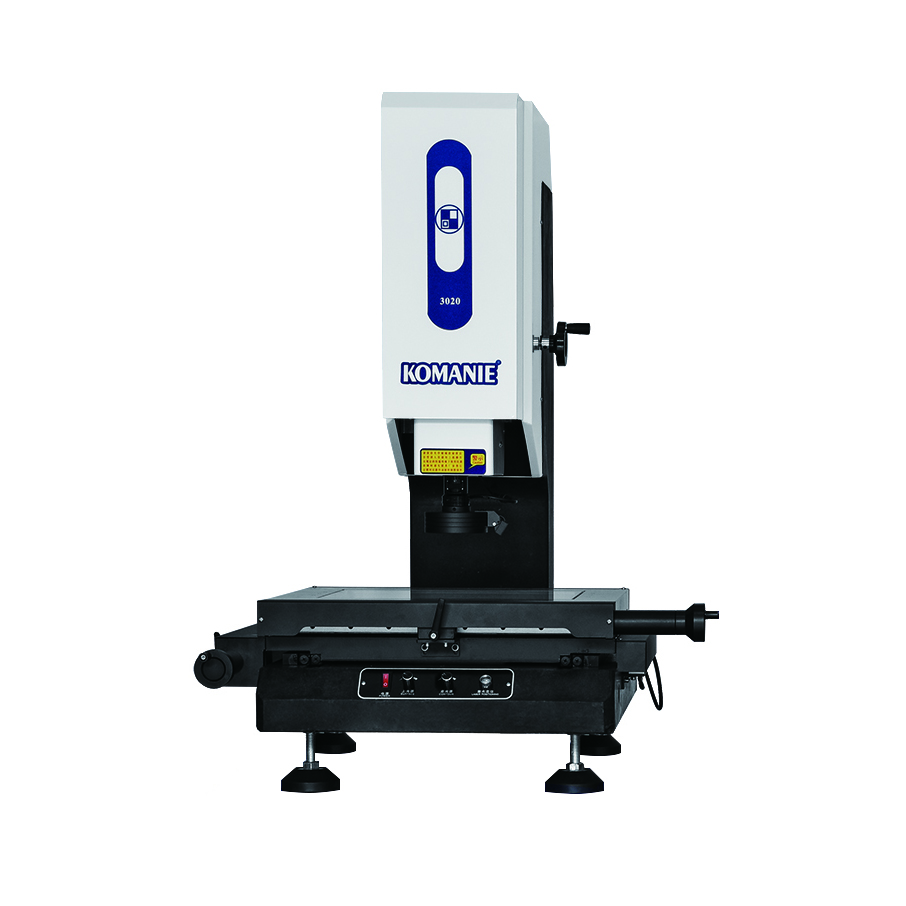

Model：DBC-3020C
XYZ measuring stroke：300*200*150mm
Working distance：90mm
Workbench size：460*360mm
Maximum load：30kg
Transmission method：X/Y-axis lead screw drive without teeth, Z-axis worm gear drive
Resolution of grating ruler：0.0005mm（0.5μm）
Measurement accuracy：X/Y≤(3+L/200)μm，Z≤(5+L/200)μm，Repeat≤3μm
Optical lens ：MTG high-definition continuously variable focal length lens / continuous magnification range 0.7 – 4.5x
Light source system：LED Ring Surface Light source + Contour LED cold light source
Overall dimensions：700*740*920mm
Instrument weight：150kg
