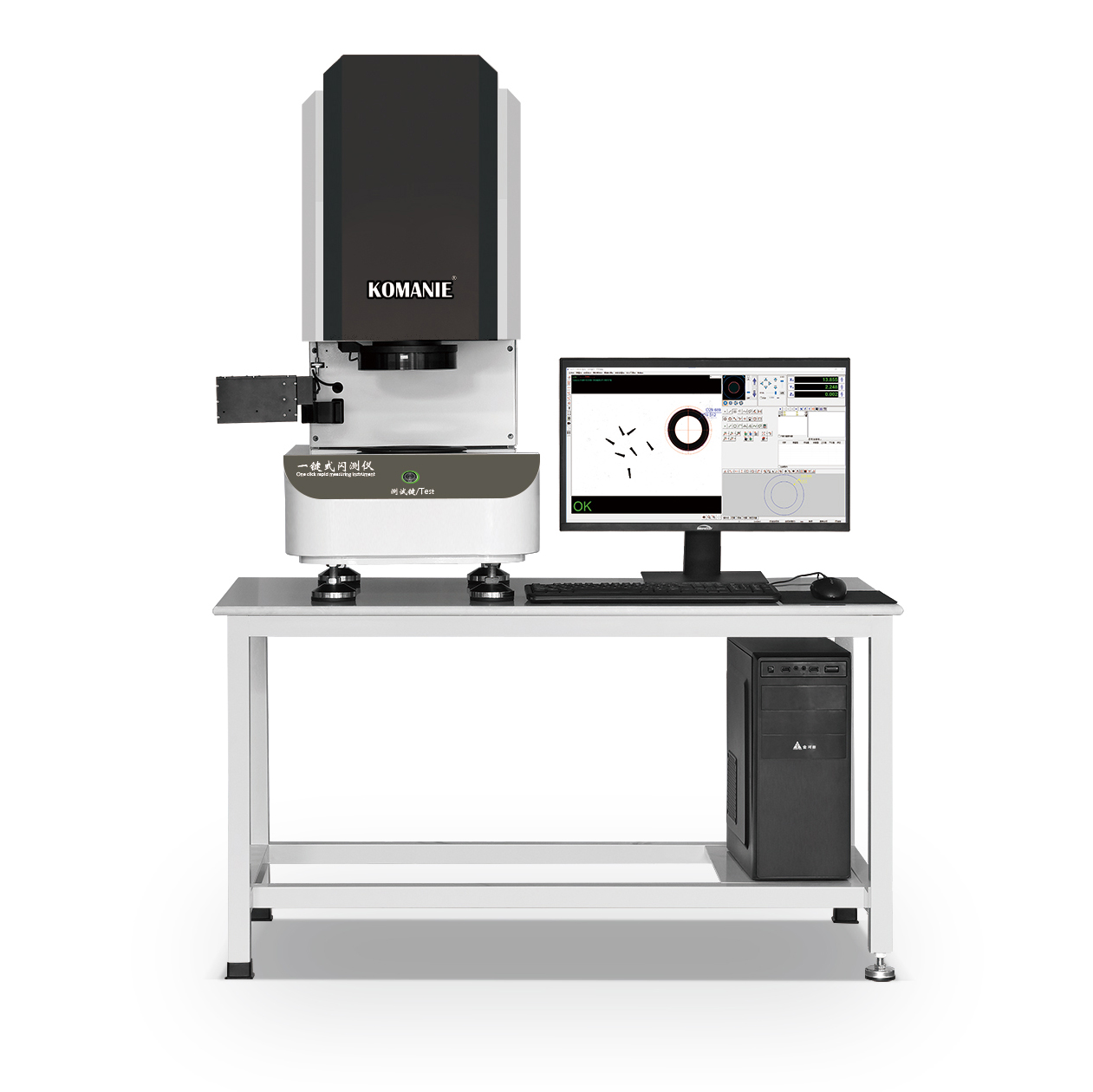

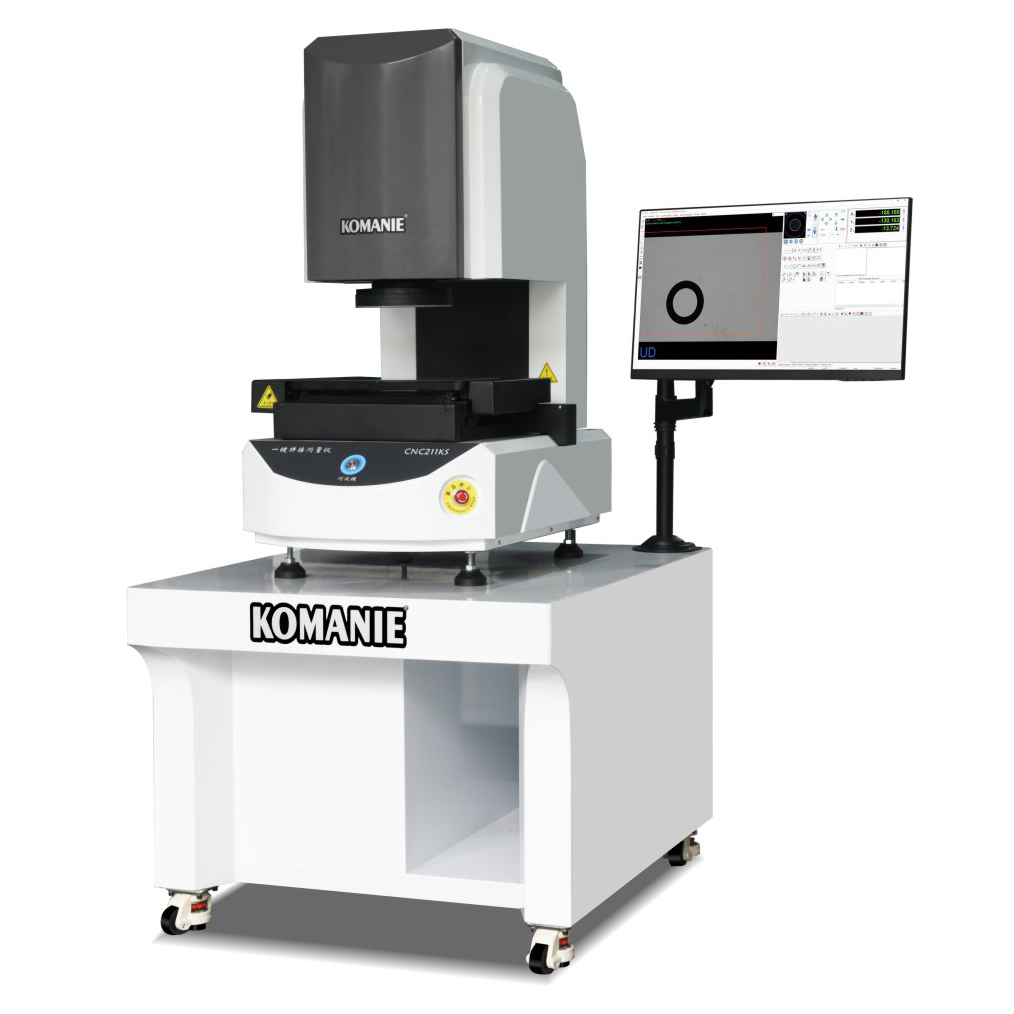

One-Button Splicing Measuring Instrument Fully Automatic Industrial Size Contour Image Flash Optical Measuring Instrument
Mainly widely used in machinery, electronics, molds, injection molding,hardware, rubber, low-voltage electrical appliances, magnetic materials,precision stamping, connectors, connectors, terminals, mobile phones, homeappliances, printed circuit boards, medical equipment, clocks, knives and othersmall-sized products and parts for batch rapid measurement.
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Product features:
Our instrument delivers highly efficient measurement: it measures single or multiple products simultaneously within the field of view, supports arbitrary product placement, and outputs product dimensions quickly with one click—subverting traditional measurement modes.
- It features a large field-of-view double-sided telecentric lens, ensuring low distortion and high measurement accuracy.
- It integrates a 20-megapixel high-definition monochrome GigE digital camera.
- It eliminates human error and delivers identical measurement results for any operator.
- It boasts a user-friendly human-machine interface, enabling anyone to operate it conveniently and rapidly.
- You can place products freely within the field of view with no need for fixtures.
- It automatically exports data reports once measurement completes.
- The surface ring light source lifts and lowers automatically, supporting software-driven automatic adjustment for products of different heights (surface coaxial light source available as an option).
- The bottom light uses a telecentric parallel light source.
- It has a sleek, robust design with a granite and aviation aluminum body, ensuring stable equipment performance.
- Its powerful software processing system and precision algorithms generate high-precision measurement results.
Powerful programming interface:
Main and commonly used functions are placed in the main interface in the form of buttons, which are easy to master. Users can complete almost all measurement actions by simply clicking and dragging the mouse.
- Object field of view：φ100mm
- Measurement range：82×55mm
- Working distance：90mm
- Measurement accuracy：(2.5+L/50)mm
- Repeat accuracy：≤0.003mm
- Instrument dimensions W*L*H：450*568*970mm
- Instrument weight：80kg
- Platform load：5kg
- Lens：Double-sided telecentric lens
- Light source system ：Telecentric parallel bottom light, annular surface light (with automatic lifting)
- Coaxial light source：Surface coaxial light source (optional)
- Working environment：25℃±2℃ 20% to 80% RH
- Report output：Word, Excel, TXT, PDF
- Power：1000W
- Power supply：AC220V ±10%, 10A, 50/60Hz
