Automatic image measuring instrument is also called precision image mapping instrument, which is a qualitative leap on the basis of digital display projector. It is an upgrade version of the projector, which overcomes the shortcomings of the traditional projector. It is a new high-precision, high-tech measuring instrument integrating light, machinery, electricity and computer image technology.
After the magnified image is sent to the computer through the CCD camera system, the contour and surface size, Angle and position of all kinds of complex workpieces can be detected efficiently, especially the microscopic inspection and quality control of precision parts. The measurement data can be directly input into AUTOCAD to become a complete engineering drawing, the graph can generate DXF documents, but also can be input into WORD, EXCEL, SP report forms, statistical analysis, can be drawn simple Xbar, S control chart, calculate Ca, and other parameters
Automatic quadratic element, is to realize CNC programming in the measurement method, can be high-speed, a large number of automatic measurement products, simple and fast operation, and gradually replace the manual image measuring instrument to become the mainstream instrument equipment in the precision measurement industry.
Quality Characteristics:
- Full marble structure to ensure high stability and rigidity. <li>Taiwan precision linear rail and ball screw, with Japan Panasonic servo motor all closed
- together control, high precision and fast speed.
- TEO1/2-inch camera from USA ensures high quality measurement picture.
- The United States navitar automatic zoom environment, change the
- magnification does not n eed to re-select the scale.</li>
- Programmable four-circle eight-phase LED ring surface cold light source and long strip LED contour cold light source.
- Precision optical ruler, resolution 0.001mm.

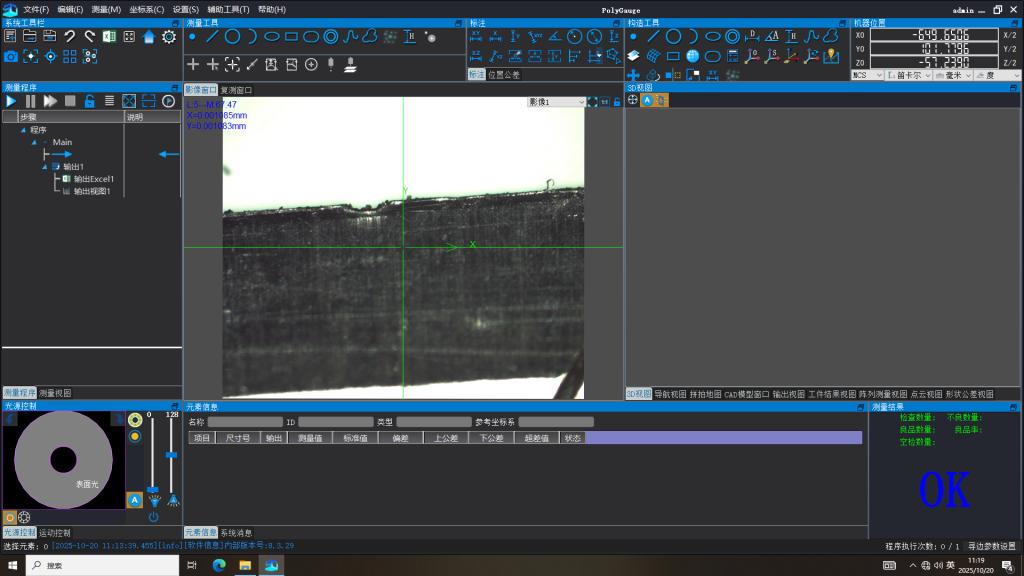

- Powerful selfmeasuring software, automatic programming, automatic detection.
